26kW Generac Generator Wire / (Copper) Part#26CU
STARTING AT $166.50 THE PRICE PER FOOT DECREASES AS LENGTH INCREASES. CHOOSE LENGTH TO SEE YOUR TOTAL SHIPPED PRICE
Max length of 115' recommended

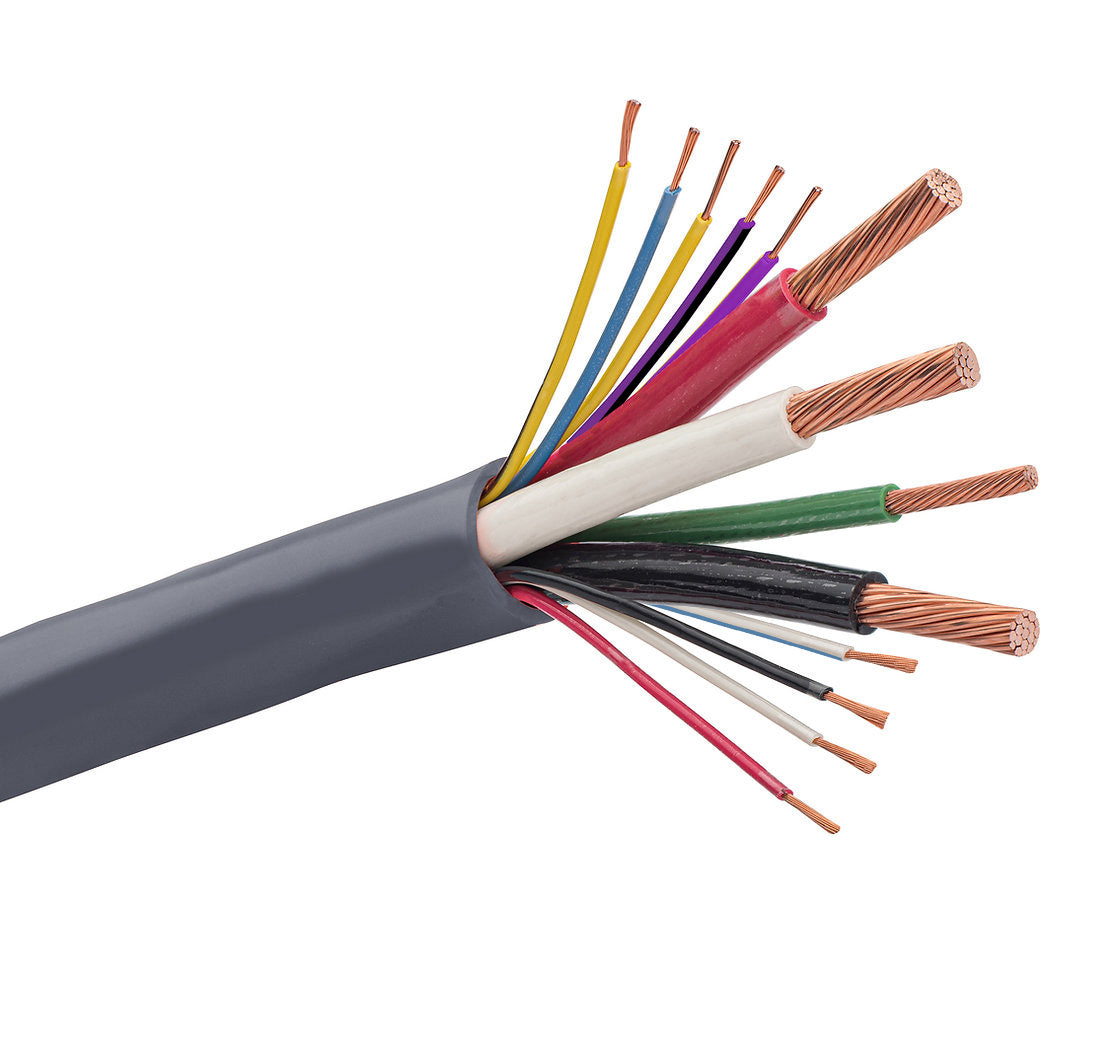

**This Multi Conductor Cable includes the following stranded copper conductors: Three #2AWG - One #6AWG - Nine #18AWG
**This is an all inclusive cable that includes all conductors necessary to connect your generator to the transfer switch. We recommend you measure the linear distance between the generator and transfer switch. The exact path the wire will be installed. Add 5' in length for connections within the generator and transfer switch
**Many jurisdictions across the United States have their own rules, standards and interpretation of the NEC. You are responsible to confirm acceptance by your Authority Having Jurisdiction. See the spec sheet to provide them for approval. There are no returns or refunds once your order has been processed and the wire has been cut
SALE OF CUT WIRE IS FINAL AND NO RETURNS WILL BE ACCEPTED
250' ORDERS NORMALLY TAKE 7-10 DAYS TO LEAVE FACTORY - THIS IS NO GUARANTEE - WE ARE UNABLE TO PROVIDE TRACKING OR CHECK LEAD TIMES ON 250' ORDERS
Additional $75.00 shipping fee may apply for residential or lift gate service on 250' orders
26kW Generac Generator Wire Features / Specs:
Click Here To See Spec Sheet
Wire Outer Diameter = 1.05"
Wire Jacket Print Legend:
(UL) E60544-PA POWER AND CONTROL TRAY CABLE TYPE TC-ER-JP 2 AWG (33,6 mm2) 3/C + 6 AWG (13,3
mm2) 1/C GROUND THWN CONDS 75C DRY/75C WET & 18 AWG (0,82 mm2) 9/C TFFN CONDS 600V OIL RES I
SUNLIGHT RESISTANCE DIRECT BURIAL JOIST PULL "sequential footage print"
Components:
A: (3) - #2 AWG Class C stranded, soft drawn, bare copper circuit conductors w/40 mils (1.02 mm) heat and moisture resistant, polyvinyl chloride (PVC) insulation and jacketed w/ 6 mils (0.15 mm) nylon applied directly to the surface of the insulation.
B: (9) - #18 AWG Class K stranded, soft drawn, bare copper conductors w/15 mils (0.38 mm) heat and moisture resistant, polyvinyl chloride (PVC) insulation and jacketed w/ 4 mils (0.10 mm) nylon applied directly to the surface of the insulation.
C: (1) - #6 AWG Class C stranded, soft drawn, bare copper grounding conductor w/30 mils (0.76 mm) heat and moisture resistant, polyvinyl chloride (PVC) insulation and jacketed w/ 5 mils (0.13 mm) nylon applied directly to the surface of the insulation
D: Mylar binder tape.
E: 80 mils (2.03 mm) of heat and moisture resistant, polyvinyl chloride (PVC) jacket. A ripcord shall be placed underneath the jacket
The 2017, 2020, 2023 NEC allows this wire to be installed without a conduit or flexible raceway unless subject to physical damage. Consult your authority having jurisdiction prior to installation
Associated to Generator Models: 7290, 7291
